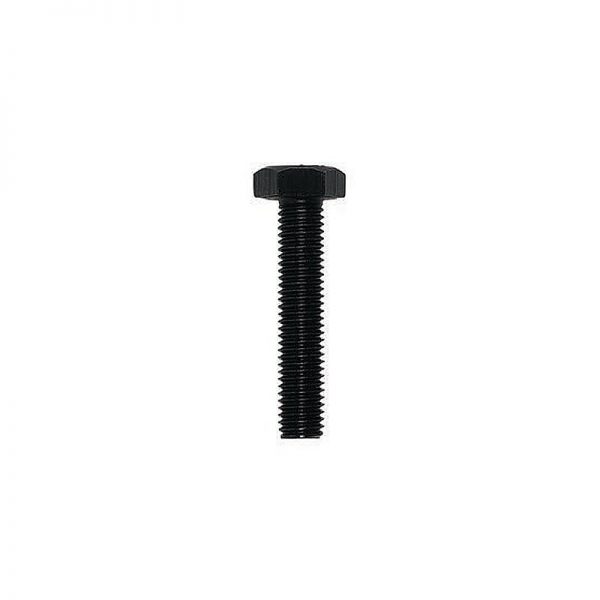

Descrição do produto
TABELA DE DIMENSÕES (MM)
d (diâmetro) | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | |
---|---|---|---|---|---|---|---|---|---|
rosca/FPP | UNC-28 | UNC-24 | UNC-24 | UNC-20 | UNC-20 | UNC-18 | UNC-18 | UNC-16 | |
s (chave) máx. | pol. | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 13/16 | 15/16 | 1-1/8 |
mm | 11,12 | 12,70 | 14,27 | 15,87 | 19,05 | 20,62 | 23,82 | 28,57 | |
h (altura cabeça) máx. | 4,14 | 5,33 | 6,17 | 7,39 | 8,20 | 9,42 | 10,23 | 12,26 |
TABELA DE PEÇAS
d (diâmetro) Comprimento |
1/4 UNC-28 |
5/16 UNC-24 |
3/8 UNC-24 |
7/16 UNC-20 |
1/2 UNC-20 |
9/16 UNC-18 |
5/8 UNC-18 |
3/4 UNC-16 |
---|---|---|---|---|---|---|---|---|
1/2 | 500 | 500 | ||||||
5/8 | 500 | 500 | 200 | |||||
3/4 | 500 | 200 | 200 | |||||
7/8 | 500 | 200 | 200 | |||||
1 | 500 | 200 | 200 | 200 | 100 | 100 | 100 | |
1-1/4 | 200 | 200 | 200 | 200 | 100 | 100 | 100 | 50 |
1-1/2 | 200 | 200 | 200 | 100 | 100 | 100 | 50 | 50 |
1-3/4 | 200 | 200 | 200 | 100 | 100 | 50 | 50 | 50 |
2 | 200 | 200 | 200 | 100 | 100 | 50 | 50 | 50 |
APLICAÇÃO: Utilizados na construção de máquinas e equipamentos industriais, estruturas metálicas, veículos, móveis de aço entre outras aplicações diversas.
