Descrição do produto

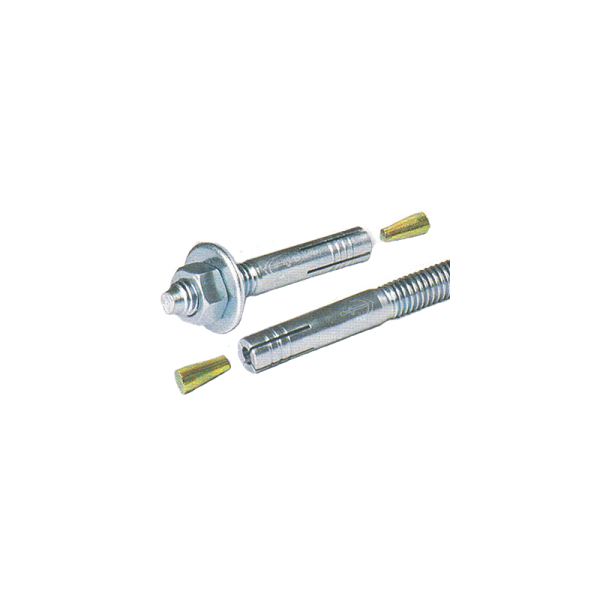

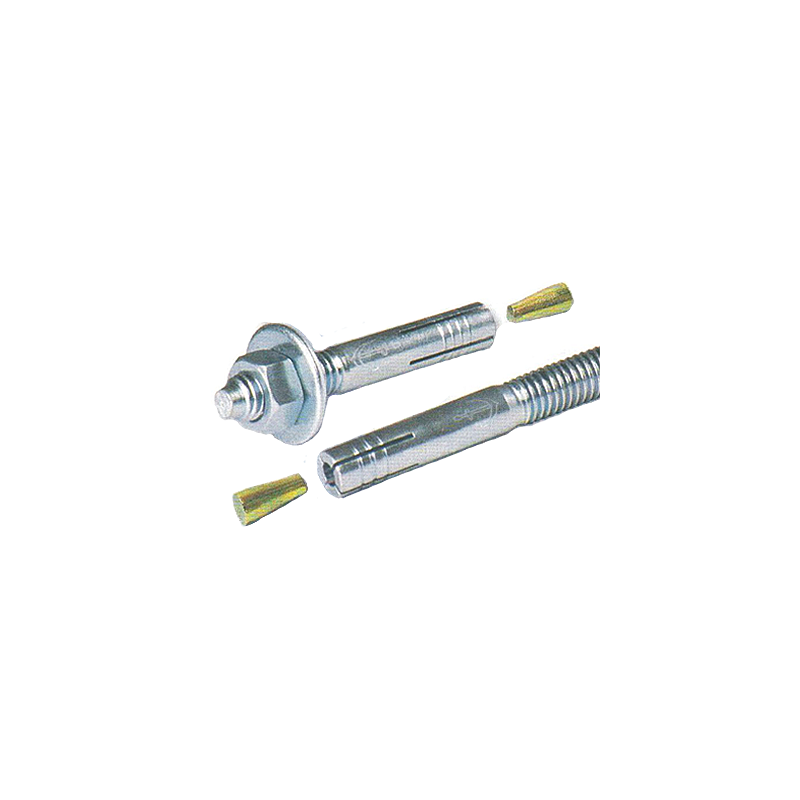

CHUMBADOR PASSANTE ROSCA EXTERNA – CHUARXS
| Código | Diâmetro da Rosca e chumbador | Comprimento do chumbador (mm) |
Comprimento da rosca (mm) | Profundidade mín/máx do furo (mm) | Espessura máxima a ser fixada (mm) | Qde |
|---|---|---|---|---|---|---|
| XS 14134 | 1/4″ | 1.3/4″ | 20 | 30-38 | 8 | 100 |
| XS 14212 | 1/4″ | 2.1/2″ | 20 | 30-57 | 27 | 100 |
| XS 14358 | 1/4″ | 3.5/8″ | 20 | 30-84 | 54 | 100 |
| XS 56238 | 5/16″ | 2.3/8″ | 25 | 35-52 | 17 | 50 |
| XS 56338 | 5/16″ | 3.3/8″ | 25 | 35-77 | 42 | 50 |
| XS 38214 | 3/8″ | 2.1/4″ | 30 | 45-47 | 2 | 100 |
| XS 38300 | 3/8″ | 3″ | 30 | 45-66 | 21 | 100 |
| XS 38334 | 3/8″ | 3.3/4″ | 30 | 45-85 | 40 | 50 |
| XS 12234 | 1/2″ | 2.3/4″ | 35 | 55-57 | 2 | 50 |
| XS 12312 | 1/2″ | 3.1/2″ | 35 | 55-74 | 19 | 50 |
| XS 12438 | 1/2″ | 4.3/8″ | 35 | 55-96 | 41 | 50 |
| XS 12514 | 1/2″ | 5.1/4″ | 35 | 55-119 | 64 | 30 |
| XS 58338 | 5/8″ | 3.3/8″ | 45 | 65-68 | 3 | 25 |
| XS 58438 | 5/8″ | 4.3/8″ | 45 | 65-94 | 29 | 25 |
| XS 58500 | 5/8″ | 5″ | 45 | 65-110 | 45 | 25 |
| XS 58700 | 5/8″ | 7″ | 45 | 65-160 | 95 | 20 |
| XS 34478 | 3/4″ | 4.7/8″ | 45 | 80-104 | 24 | 20 |
| XS 34614 | 3/4″ | 6.1/4″ | 45 | 80-139 | 59 | 20 |
| XS 34812 | 3/4″ | 8.1/2″ | 45 | 80-196 | 116 | 20 |
